SmartWorker

SPS-7

항목	규격	단위	SPS-7
Work Table	Size	mm	920 x 730
Work Table	Max. Weight	kg	450
Travel Distance	X-axis	mm	900
	Y-axis	mm	700
	Z-axis	mm	340
	Distance between table and main spindle	mm	270 / 590
Spindle	Maximum	rpm	12K / 20K(OP)
Spindle	Torque	kw	18.5 / 11.0
ATC	Taper	degree	BT-40
	Loading quantity of tools	ea	30 (40)
	Cooling system	type	Grease / Cooling Oil
Conveying Rate	Rapid speed	mm/min	36,000 / 36,000 / 36,000
Conveying Rate	Cutting feedrate	mm/min	10,000 / 10,000 / 10,000
Degree of precision	Position accuracy	mm	±0.005 / 300
Degree of precision	Repeat accuracy	mm	±0.003 / 300
Machine Size	Body Size	mm	2,970 x 2,630 x 2,730
Machine Size	Weight	kg	8,000
Power	Air Pressure	Mpa	0.6~0.8
	Electricity	3-Phase AC220V, 50/60Hz, 35Kw
NC Unit	Fanuc Series 0i-MODEL F / Fanuc 31i (OP)
Software	YJSMI / YJ-Monitoring / CAM ATS / AICC II
탱크용량	절삭유 탱크 용량	L	340
탱크용량	윤활유 탱크 용량	L	2

확대

G-MAN7

항목	규격	단위	G-MAN7
Work Table	Size	mm	650 x 800
Work Table	Max. Weight	kg	450
Travel Distance	X-axis	mm	600
	Y-axis	mm	700
	Z-axis	mm	320
	Distance between table and main spindle	mm	580
Spindle	Maximum	rpm	12K / 24K(OP)
Spindle	Torque	kw	24.0 / 11.0
ATC	Taper	degree	BT-40 / BT-30 (OP)
	Loading quantity of tools	ea	30
	Cooling system	type	Grease / Cooling Oil
Conveying Rate	Rapid speed	mm/min	36,000 / 36,000 / 36,000
Conveying Rate	Cutting feedrate	mm/min	10,000 / 10,000 / 10,000
Degree of precision	Position accuracy	mm	±0.005 / 300
Degree of precision	Repeat accuracy	mm	±0.003 / 300
Machine Size	Body Size	mm	3,000 x 2,400 x 2,400
	Dust Collector	mm	950 x 800
	Weight	kg	6,000
Power	Air Pressure	Mpa	0.6~0.8
	Electricity	3-Phase AC220V, 50/60Hz, 35Kw
NC Unit	Fanuc Series 0i-MODEL F / Fanuc 31i (OP) / Siemens 828D (OP)
Software	YJSMI / YJ-Monitoring / CAM ATS / AICC II

확대

G-MAN6

항목	규격	단위	G-MAN6
Work Table	Size	mm	600 x 750
Work Table	Max. Weight	kg	400
Travel Distance	X-axis	mm	500
	Y-axis	mm	600
	Z-axis	mm	300
	Distance between table and main spindle	mm	500
Spindle	Maximum	rpm	12,000 / 24,000 (OP)
Spindle	Torque	kw	12.0 / 3.7
ATC	Taper	degree	BT-30
	Loading quantity of tools	ea	30
	Cooling system	type	Grease / Cooling Oil
Conveying Rate	Rapid speed	mm/min	36,000 / 36,000 / 36,000
Conveying Rate	Cutting feedrate	mm/min	10,000 / 10,000 / 10,000
Degree of precision	Position accuracy	mm	±0.005 / 300
Degree of precision	Repeat accuracy	mm	±0.003 / 300
Machine Size	Body Size	mm	2,400 x 2,050 x 2,912
	Dust Collector	mm	950 x 850
	Weight	kg	6,000
Power	Air Pressure	Mpa	0.6~0.8
	Electricity	3-Phase AC220V, 50/60Hz, 35Kw
NC Unit	Fanuc Series 0i-MODEL F / Fanuc 31i (OP) / Siemens 828D (OP)
Software	YJSMI / YJ-Monitoring / CAM ATS / AICC II

확대

E-MAN7

항목	규격	단위	E-MAN7
Work Table	Size	mm	650 x 800
Work Table	Max. Weight	kg	450
Travel Distance	X-axis	mm	600
	Y-axis	mm	700
	Z-axis	mm	320
	Distance between table and main spindle	mm	580
Spindle	Maximum	rpm	12K / 24K(OP)
Spindle	Torque	kw	24.0 / 11.0
ATC	Taper	degree	BT-40 / BT-30 (OP)
	Loading quantity of tools	ea	30
	Cooling system	type	Grease / Cooling Oil
Conveying Rate	Rapid speed	mm/min	36,000 / 36,000 / 36,000
Conveying Rate	Cutting feedrate	mm/min	10,000 / 10,000 / 10,000
Degree of precision	Position accuracy	mm	±0.005 / 300
Degree of precision	Repeat accuracy	mm	±0.003 / 300
Machine Size	Body Size	mm	3,000 x 2,400 x 24000
Machine Size	Weight	kg	6,000
Power	Air Pressure	Mpa	0.6~0.8
	Electricity	3-Phase AC220V, 50/60Hz, 35Kw
NC Unit	Fanuc Series 0i-MODEL F / Fanuc 31i (OP) / Siemens 828D (OP)
Software	YJSMI / YJ-Monitoring / CAM ATS / AICC II

확대

C-MAN7

C-MAN6

항목	규격	단위	C-MAN6
Work Table	Size	mm	1200 x 520
Work Table	Max. Weight	kg	800
Travel Distance	X-axis	mm	1050
	Y-axis	mm	520
	Z-axis	mm	520
	Distance between table and main spindle	mm	670
Spindle	Maximum	rpm	12K / 8K(OP)
Spindle	Torque	kw	24.0 / 11.0
ATC	Taper	degree	BT-40 / BT-50 (OP)
	Loading quantity of tools	ea	30
	Cooling system	type	Grease / Cooling Oil
Conveying Rate	Rapid speed	mm/min	36,000 / 36,000 / 36,000
Conveying Rate	Cutting feedrate	mm/min	10,000 / 10,000 / 10,000
Degree of precision	Position accuracy	mm	±0.005 / 300
Degree of precision	Repeat accuracy	mm	±0.003 / 300
Machine Size	Body Size	mm	3,000 x 2,790 x 2,955
Machine Size	Weight	kg	6,000
Power	Air Pressure	Mpa	0.6~0.8
	Electricity	3-Phase AC220V, 50/60Hz, 35Kw 3-Phase AC380V, 550Hz, 35KVA
NC Unit	Fanuc Series 0i-MODEL F / Fanuc 31i (OP) / Siemens 828D (OP)
Software	YJSMI / YJ-Monitoring / CAM ATS / AICC II

확대

G-MAN / C-MAN / SPE / SPS Series

내수용 모델
G-MAN : 흑연전극 전용 스마트워커
C-MAN : 동전극 전용 스마트워커
S-MAN : 스틸(3D, 입자코어) 전용 스마트워커
P-MAN : 2D/2.5D 스틸 가공전용 스마트워커

수출형 모델
SPE-7 : 흑연전극 전용 스마트CNC

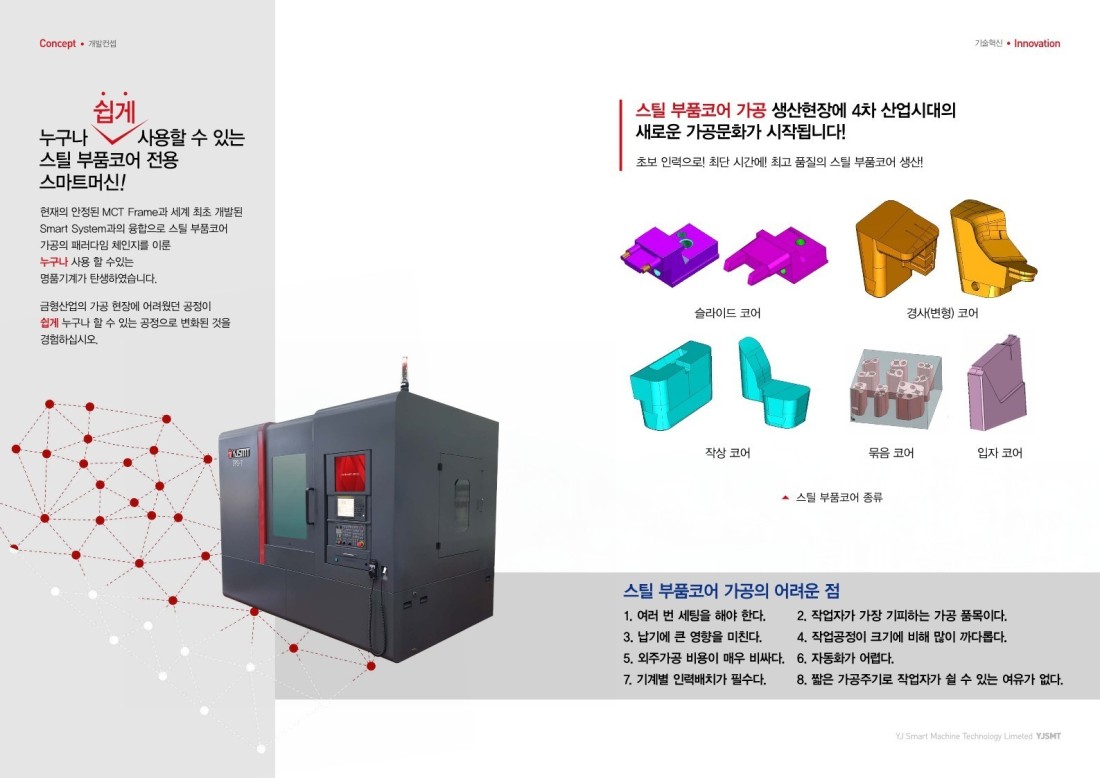

SPS-7 : 금형부품 코어 전용 스마트CNC

스마트CNC / 스마트워커는 초보자도 10분만 교육 받으면 CAM과 MCT를 다뤄본 적이 없어도 전문인력 수준의 가공결과를 만들어 낼 수 있습니다.
스마트워커는 3D 프린터처럼 모델링만 불러오면 출력되서 3D 제품이 생산되는 것처럼 3D 모델링만 불러오면 스마트워커에서 제품이 자동으로 가공이 됩니다.
CAM 작업자의 스트레스를 덜어드리고 더 복잡하고 어려운 일에 집중 할 수 있도록 도우며 기존 소수의 CAM 인력만으로도 대량 생산을 하실 수 있습니다.
스마트CNC / 스마트워커로 금형 스틸 가공 및 전극 가공의 고민을 완전히 해결하실 수 있습니다.
이제는 금형 산업의 진정한 4차 산업혁명이 시작되었습니다.
여러분도 경험해보세요~
